pressure will be obtained at the discharge slot. The impeller mounted directly on the motor shaft is rotating smoothly without friction and thus no lubrication is necessary. The pressure difference of course remains steady. The Side Channel Blowers are widely used on : Pneumatic conveying systems / Textile machines / Printing machines / PCB process / Dust collection / Fish ponds / SPA / Dental suction devices / Paper sorting and delivery / Lifting and holding / Packaging machines

eatures and Advantages

Casing（except RB80）and impellers are made of aluminum alloy and have excellent features on mechanic strength、 durability、light weight and smooth exterior.

RB series Side Channel Blowers are designed to comply with the safety requirements of IEC / UL / CSA and have attained their Type Approval.

Meet CE Norm : 89/336 , 73/23 , EN60204-1, EN50081-2 , EN50082-2.

Degree of protection : IP54 / IP55

Insulation class: F ( 155℃ )

Voltage range :

              1 Phase, 100~120 / 200~240 VOLT

              1 Phase, 108~120 / 216~240 CSA/UL

              3 Phase, 200~240 / 380~440 VOLT

              3 Phase, 208~240 / 416~480 VOLT CSA/UL

Frequency : 50 / 60 Hz

Installation : Any aspect. (except RB20,30)

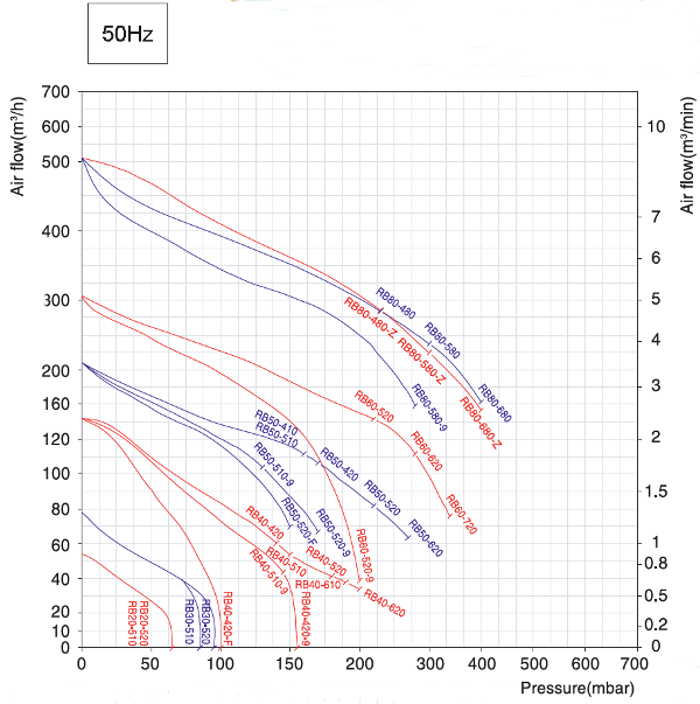

Positive Pressure Application Illustration 50Hz
