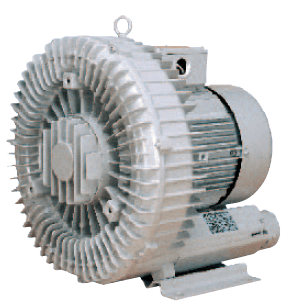

Operating Principle and Application
The aspirated gas flows through the compression chamber along a helical trajectory and is repeatedly accelerated by the centrifugal thrust of the impeller. Consequently, higher
rb-catalog-big

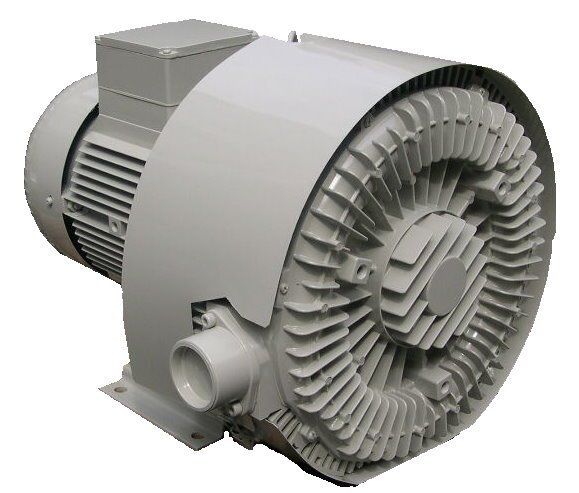

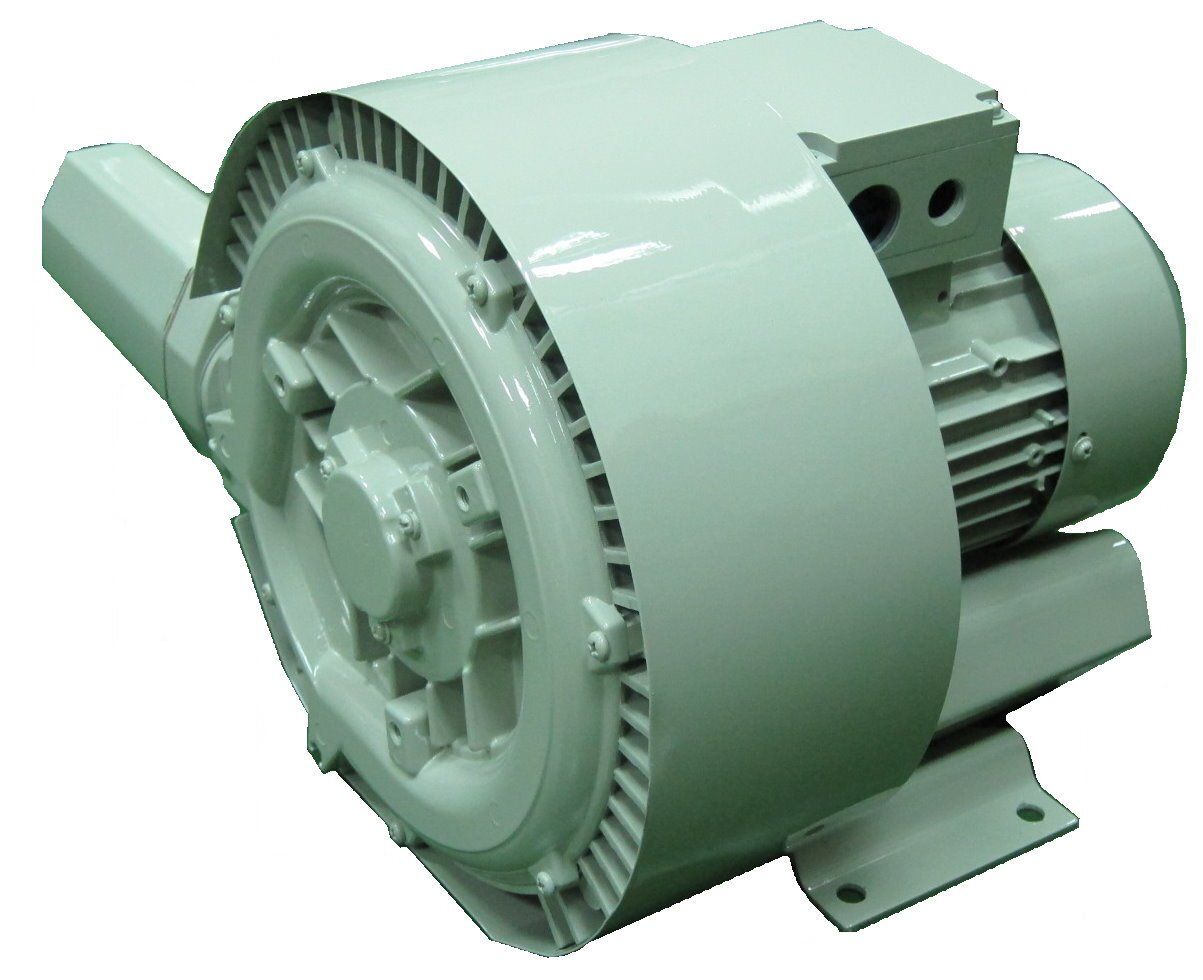

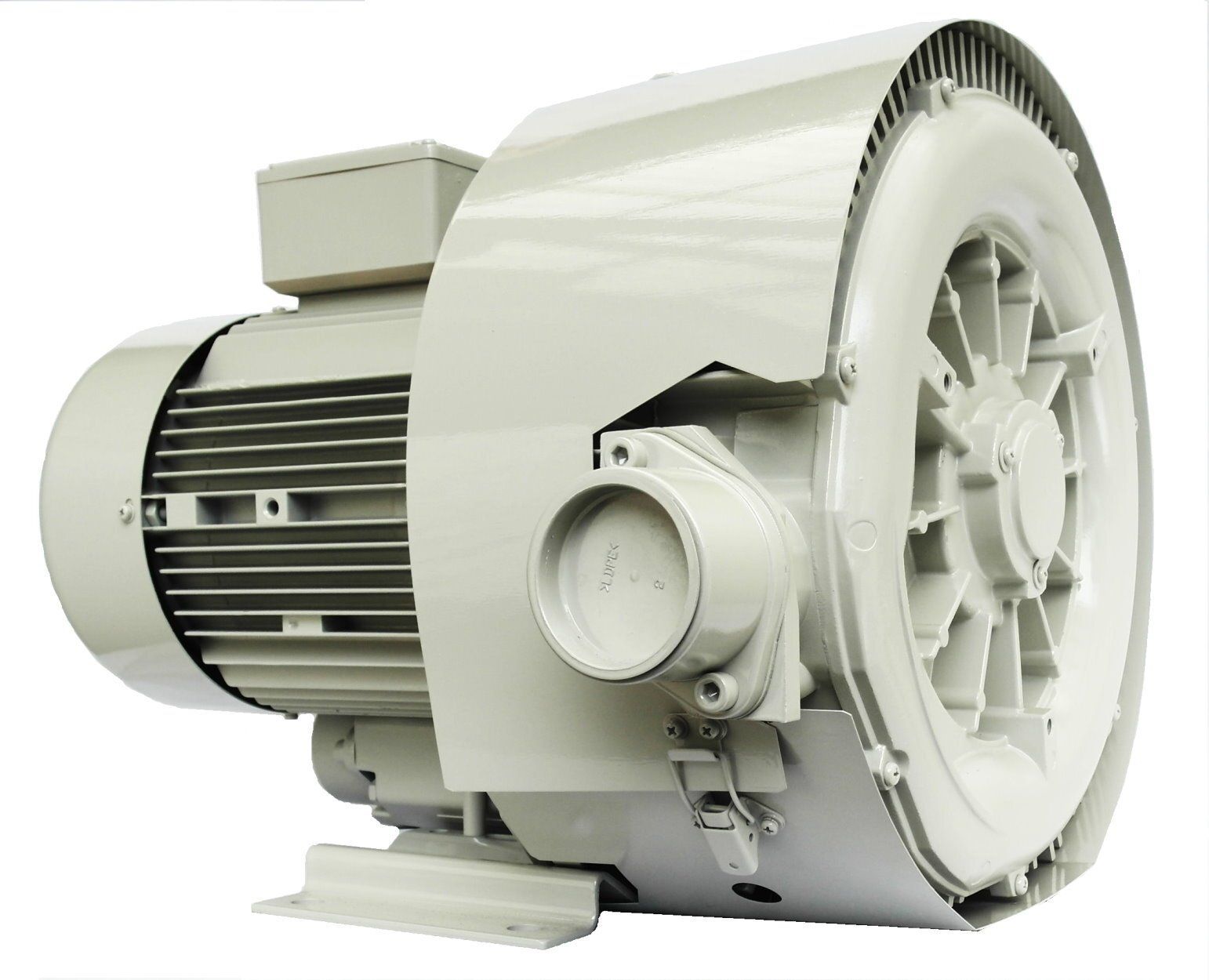

pressure will be obtained at the discharge slot. The impeller mounted directly on the motor shaft is rotating smoothly without friction and thus no lubrication is necessary. The pressure difference of course remains steady. The Side Channel Blowers are widely used on : Pneumatic conveying systems / Textile machines / Printing machines / PCB process / Dust collection / Fish ponds / SPA / Dental suction devices / Paper sorting and delivery / Lifting and holding / Packaging machines
eatures and Advantages

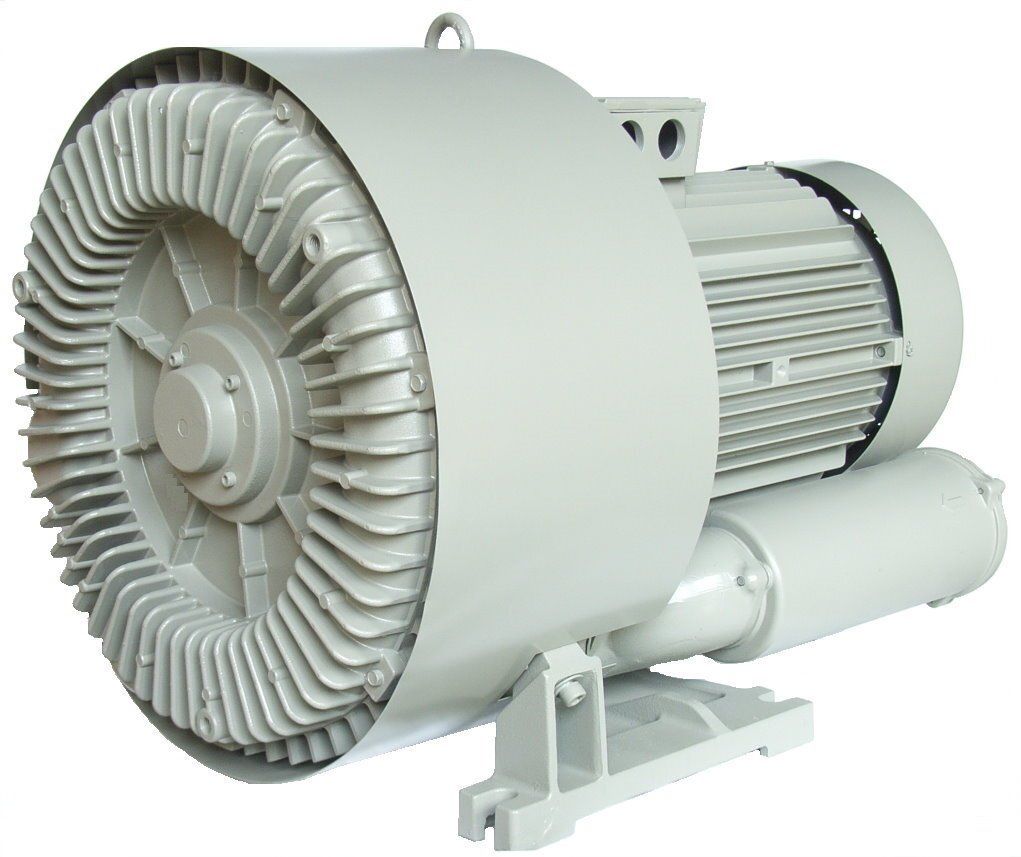

Casing（except RB80）and impellers are made of aluminum alloy and have excellent features on mechanic strength、 durability、light weight and smooth exterior.
RB series Side Channel Blowers are designed to comply with the safety requirements of IEC / UL / CSA and have attained their Type Approval.
Meet CE Norm : 89/336 , 73/23 , EN60204-1, EN50081-2 , EN50082-2.
Degree of protection : IP54 / IP55
Insulation class: F ( 155℃ )
Voltage range :
1 Phase, 100~120 / 200~240 VOLT
1 Phase, 108~120 / 216~240 CSA/UL
3 Phase, 200~240 / 380~440 VOLT
3 Phase, 208~240 / 416~480 VOLT CSA/UL

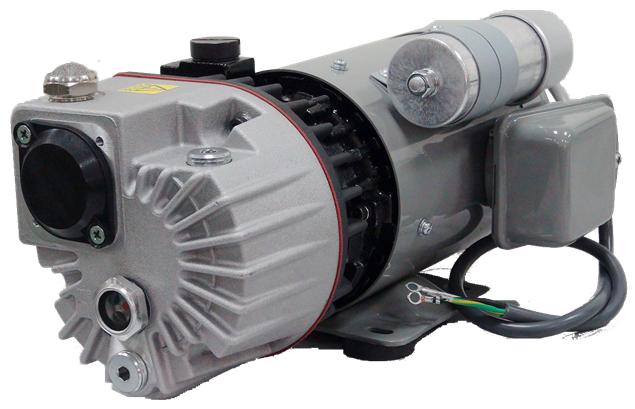

Rotary Vane Vacuum Pumps
They compose of a precision made pump and direct driving
Induction Motor with high starting torque.
Lowest cost and excellent performance contributes to the
best choice for lots of applications that need middle vacuum.
RB-IE2 (50Hz)new badgeRing Compressor with IE2 high efficiency Motors (50Hz)
Under condition (*2)，the test value.
Max. pressure for continuous operation permitted.
dB(A) value gets from 4 points & 1 meter distance test.
The voltage tolerance is +/- 5%.
The frequency tolerance is +/- 2 % maximum.
Can not be operated with closed intake & outlet, a suitable pressure-relief valve must be used.
