Willkommen

auf unser Katalogseite Seitenkanalgebläse.info
Unsere Produktpalette umfasst einen umfangreichen Bereich an
Seitenkanalverdichter, Doppel-Seitenkanalverdichter und Vakuumpumpen.
Viele Modelle auch mit innovativen high efficiency Motor lieferbar.

Operating Principle and Application

The aspirated gas flows through the compression
chamber along a helical tractor and is repeatedly
accelerated by the centrifugal thrust of the impeller.
Consequently, higher pressure will be obtained at
the discharge slot. The impeller mounted directly on
the motor shaft is rotating smoothly without friction
and thus no lubrication is necessary. The
pressure difference ofcourse remains

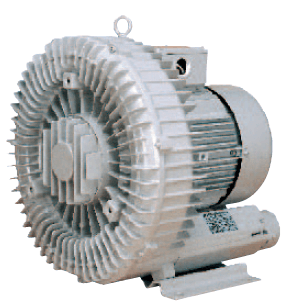

steady. The Side Channel Blowers
are widely used in: Pneumatic
conveying systems / Textile
machines / Printing
machines / PCB process /
Dust collection / Fish
ponds / SPA / Dental suction
devices / Paper sorting
and delivery / Lifting
and holding / Packaging
machines.

Features and Advantages

Casing and impellers are made of aluminum alloyand have excellent features on mechanic strength RB series Side Channel Blowers are designed to comply with the safety requirements of IEC / UL / CSA and have attained their Type Approval. Meet CE Norm: 89/336, 73/23, EN60204-1, EN50081-2, EN50082-2 Degree of protection: IP54 Insulation class: F (155 °C) Voltage range: 1 Phase, 100-120 / 200-240 Volt 3 Phase, 200-240 / 380-440 Volt 3 Phase, 230-460 Volt Frequency: 50 / 60 Hz Installation: any aspectNeuer Text


Accessories



  • Filter for Blowers
  • n-line Filter for Suction
  • Pressure relief valve for blowers
  • Vacuum relief valve for suction
  • Additional silencer
